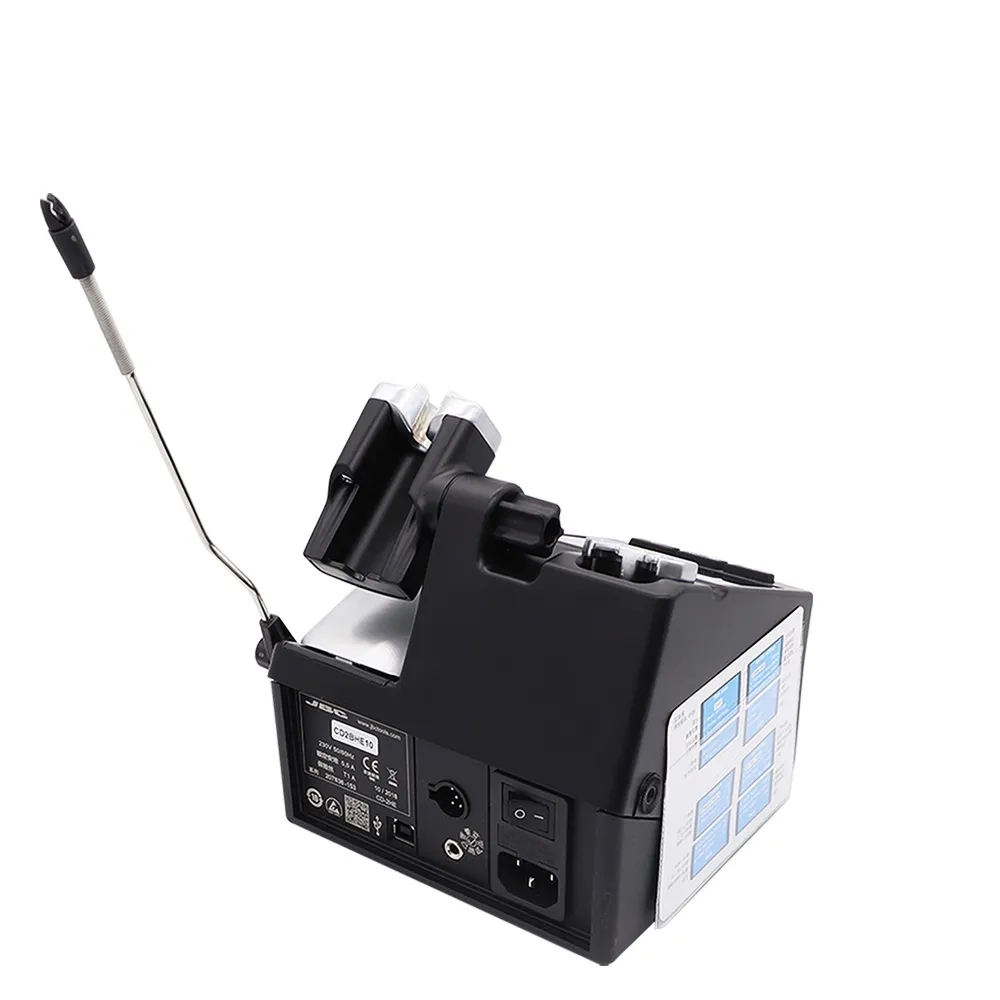

JBC CD-2SHE WITH T210-A HANDLE PRECISION SOLDERING STATION
Description:
The CD-B is a soldering station with the JBC Advanced system for general electronic applications.
It works with the JBC exclusive heating system and the intelligent sleep & hibernation features.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
It features a USB connector to update software, create graphs, and manage parameters from a PC.
Complete cleaning system with an antisplash membrane to keep the work area clean.
Use the integrated wiper to remove excess solder from the tip.
Use T210 series handle, with C210 series iron head for precision
Power 40W. Can be used 300 degrees low-temperature welding
You can use the USB-B type data cable to connect the computer to observe the temperature curve.
2 seconds to 350 degrees
Up to 20 sets of parameters can be set using the menu
Unique sleep + sleep function can extend the life of the tip 5 times
User-friendly handle control, very comfortable to use the feel
Specifications
Ambient operating temp.: 10-40 C / 50-104 F
Input Fuse: 1A (230V)
Output Peak Power: 130W / 23.5V
Package dimensions: 234 x 234 x 258 mm
Package weight: 5 kg
Size: 150 x 200 x 180 mm
Temperature selection: 90-450 C / 190-840 F
Tip to ground resistance: <2 ohms
Tip to ground voltage: <2mV RMS
Voltage: 230V
Weight: 4.2 kg
Package list:
CD Control Unit: CD-2HE (230V)
Precision Purpose Handle: T210-A
Power Cord: 0009401(230V)
Cartridges: C210001*1PCS, C210008*1PCS
Sponge: S0354
Manual: 0017070
